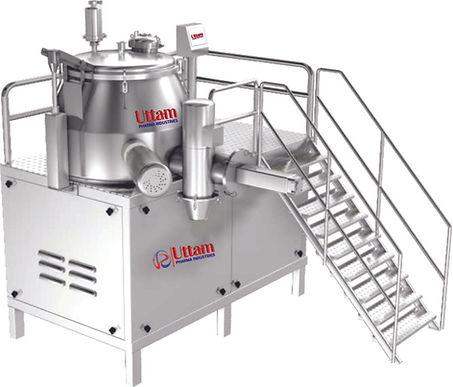

RAPID MIXER GRANULATOR
Home / Rapid Mixer Granulator
.jpg)
Application Process
The High Shear mixer Granulator is Used for process of fast dry wet mixing homogenizing, humidifying and granulating of the powder in pharmaceuticals chemical, foods, cosmetic, plastics and general mixing industries
the high shear mixer granulator is performs drying mixing & wet granulating by basic design of the special four arm of the mixing impeller and sequences of the mixing process in the cylindrical mixing drum with rounded connection to the base plate, achieveing another special effect. the mixing process runs without varying pressure zone in the in the volume of mixing product.separately driven multiple chopper can effectively intensify , the mixing result in particular when liquid or paste componets are added during humidifying and granulating process of the products chopper controls and regulates the granular spectrum and structure of the granules according to the product chopper shape and time the HSMG system requires only small quantities of granulating liquid or pastes to obtain the required granulate structure this reduces amount of drying energy required.
Salient Features
-
Design is CGmp-Current Good Manufacturing Practices Compliance.
-
All contact parts AISI 316/361L & non contact parts AISI 304.
-
High shear mixing and granulation in single bowl with short batch time, problem free cleaning and residue free discharge
-
Unique design with four arm mixing impeller with blade angle to pushing product radically outward.
-
Chopper blade designed to cuts lumps and make granules. ï‚· Dual speed mixing impeller for mixing and intensify chopper for granulating.
-
High precision mixing and granulation with short batch time, problem free cleaning and residue free discharge.
-
Pneumatic top lid lifting system
-
Bottom impeller lifting system
-
Air pursing for seal for both shafts.
-
Pneumatically operated flush discharge gate
-
3/4blade main impeller and 4 blade chopper impeller
-
Variable speed drive for main and chopper motors
-
Online comill at discharge
-
Plc in control panel 21 CFR compliant
